Elite Series

The Elite series sets a new standard in display technology, delivering breathtaking image clarity and detail with Pro-clarity Technology. With its fine pixel pitch and superior contrast ratio, every image comes to life, making it perfect for showcasing high-definition content in 2K and 4K resolutions.




Superior Image Quality

Pro-clarity Technology supported by 6000:1 contrast, 3840HZ refresh, and 16+ bit grayscale

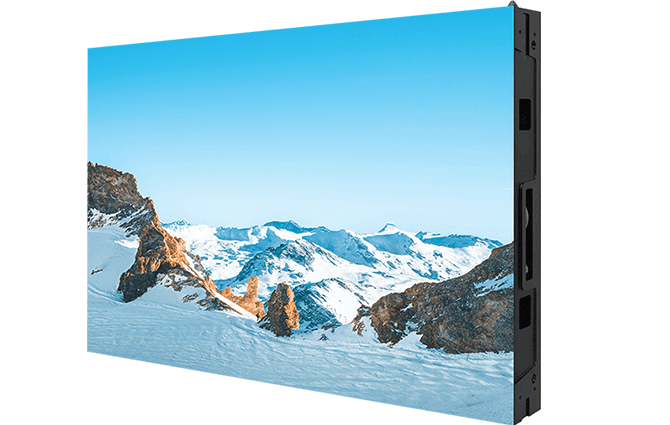

Light and Slim

Slim panel design
The total depth of a complete LED wall can be less than 2.7''
ADA Compliant

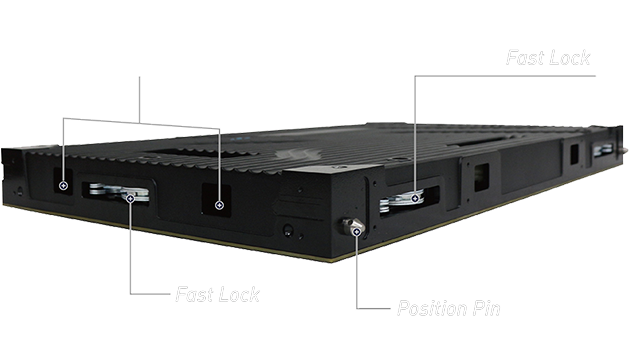

Nice and Clean

Cableless connection design gives a super neat looking
No power/data jumper cables between the LED panels and modules makes installation an ease.

Versatile Installation

All mounting solutions inculding wall mounting, ceiling hanging, and floor standing compatible. Rich mounting accessories available for all sorts of needs.

Creativity Compatible

Concave solution available
90° corner solution available
Infrared Interactive touch frame available
Specifications
Elite 0.7mm
Elite 0.9mm
Elite 1.2mm
Elite 1.5mm
Elite 1.8mm
Elite2.5mm
Product Model
Per Panel Resolution
Panel Size (W*H*D)-mm
Panel Size (W*H*D)-inch
Per Panel Diagonal
Brightness
Refresh Rate
Grayscale
Contrast Ratio
View Angle
Service Access
Per Panel Weight
Per Panel Power Consumption (max)
Per Panel Power Consumption (typical)
Color Gamut
Color Temperature
Service Life
Working Voltage
Operating Temperature

(10-85% relative humidity, non-condensing)

Elite 0.7mm

768*432

600*337.5*48.5mm

23.62''x13.29''x1.9''

27''

600 nits

3840 HZ

16 Bits

6000:1

170°Horizontal / 170°Vertical

Front Service

7.5KG / 16.5 LBS

135W

40W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 40° C  / -4° to 104° F

Elite 0.9mm

640*360

600*337.5*48.5mm

23.62''x13.29''x1.9''

27''

600-800 nits

3840 HZ

16 Bits

6000:1

170°Horizontal / 170°Vertical

Front Service

7.5KG / 16.5 LBS

130W

38W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 40° C  / -4° to 104° F

Elite 1.2mm

480*270

600*337.5*48.5mm

23.62''x13.29''x1.9''

27''

600-800 nits

3840 HZ

16 Bits

6000:1

170°Horizontal / 170°Vertical

Front Service

7.5KG / 16.5 LBS

130W

38W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 40° C  / -4° to 104° F

Elite 1.5mm

384*216

600*337.5*48.5mm

23.62''x13.29''x1.9''

27''

600-800 nits

3840 HZ

16 Bits

6000:1

170°Horizontal / 170°Vertical

Front Service

7.5KG / 16.5 LBS

128W

36W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 40° C  / -4° to 104° F

Elite 1.8mm

320*180

600*337.5*48.5mm

23.62''x13.29''x1.9''

27''

600-800 nits

3840 HZ

16 Bits

6000:1

170°Horizontal / 170°Vertical

Front Service

7.5KG / 16.5 LBS

125W

36W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 40° C  / -4° to 104° F

Elite 2.5mm

240*135

600*337.5*48.5mm

23.62''x13.29''x1.9''

27''

600-800 nits

3840 HZ

16 Bits

6000:1

170°Horizontal / 170°Vertical

Front Service

7.5KG / 16.5 LBS

125W

36W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 40° C  / -4° to 104° F
