DU Series

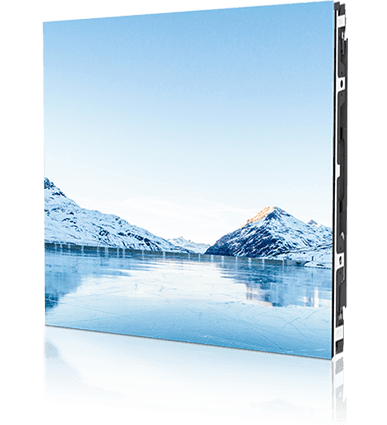

DU Series is a fine-pitch outdoor LED video wall display designed to meet the superior image clarity needs for outside applications.



Superior Image Quality

Dynamic Pro Technology supported by high brightness, high refresh, and high grayscale.

8:9 Aspect Ratio Panel

Easy to be built into native 16:9 outdoor LED walls of all different sizes

Light and Slim

40% lighter than traditional outdoor LED panels in the market, only 5lbs per square feet.
Slim but strong aluminum alloy frames enables this product to fit in all sorts of outdoor spaces.

Versatile Installation

All mounting solutions inculding wall mounting, ceiling hanging, and floor standing compatible. Rich mounting accessories available for all sorts of needs.

Creativity Compatible

Concave/Convex solution available
90° corner solution available


Specifications
DU 1.5mm
DU 1.8mm
DU 2.5 mm
Product Model
Panel Size (W*H*D)-mm
Panel Size (W*H*D)-inch
Per Panel Resolution
Brightness
Refresh Rate
Grayscale
Contrast Ratio
View Angle
Service Access
Panel Material
Per Panel Weight
Per Panel Power Consumption (max)
Per Panel Power Consumption (typical)
Color Gamut
Color Temperature
Service Life
Working Voltage
Operating Temperature
(10-85% relative humidity, non-condensing)

DU 1.5mm

480x540x66

18.9''x21.26x2.6''

320*360

4000 nits

1920-3840 HZ

14 bit

4000 :  1

160°Horizontal / 160°Vertical

Front Service / Rear Service

Aluminum

9.5 KG/ 20.9 LBS

190W

56W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 50° C  / -4° to 122° F

DU 1.8mm

480x540x66

18.9''x21.26x2.6''

256*288

4000 nits

1920-3840 HZ

14 bit

4000 :  1

160°Horizontal / 160°Vertical

Front Service / Rear Service

Aluminum

9.5 KG/ 20.9 LBS

190W

56W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 50° C  / -4° to 122° F

DU2.5 mm

480x540x66

18.9''x21.26x2.6''

192*216

4000 nits

1920-3840 HZ

14 bit

4000 :  1

160°Horizontal / 160°Vertical

Front Service / Rear Service

Aluminum

9.5 KG/ 20.9 LBS

190W

56W

100% NTSC

3,000-10,000 K

100,000 Hours

100V-240V Auto-switching

-20° to 50° C  / -4° to 122° F
