E-Poster Series

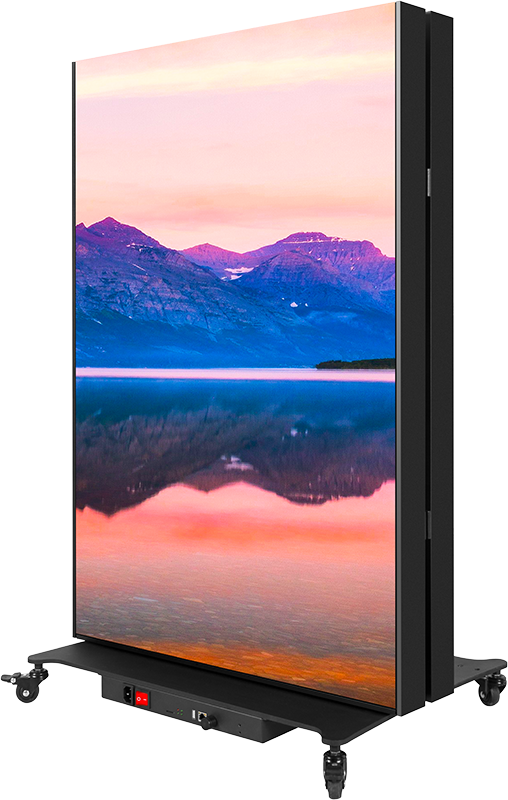

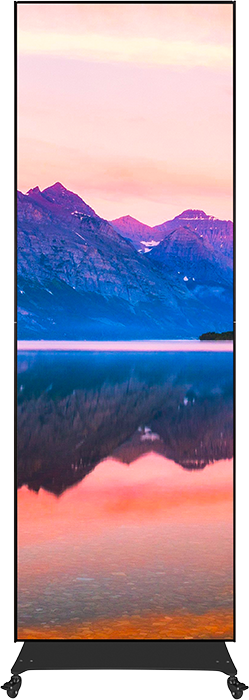

An all-in-one portable digital signage solution using dvLED technology. Extramely easy to be deployed to all different kinds of venues like hotels, retail stores, banks, churches, etc. Wireless Android based system with friendly UI. Everyone can learn how to use it in a minute.

Push & Go

Designed with smooth wheels at the bottom and lightweight hardwares, you can move it to anywhere you want with an ease.

Consumer Grade UI

Comes with an friend Android-based OS and a friendly user interface that any one can load in content in a couple of minutes. HDMI, WLAN, and USB connection available. It also has speakers built in for sound playing.

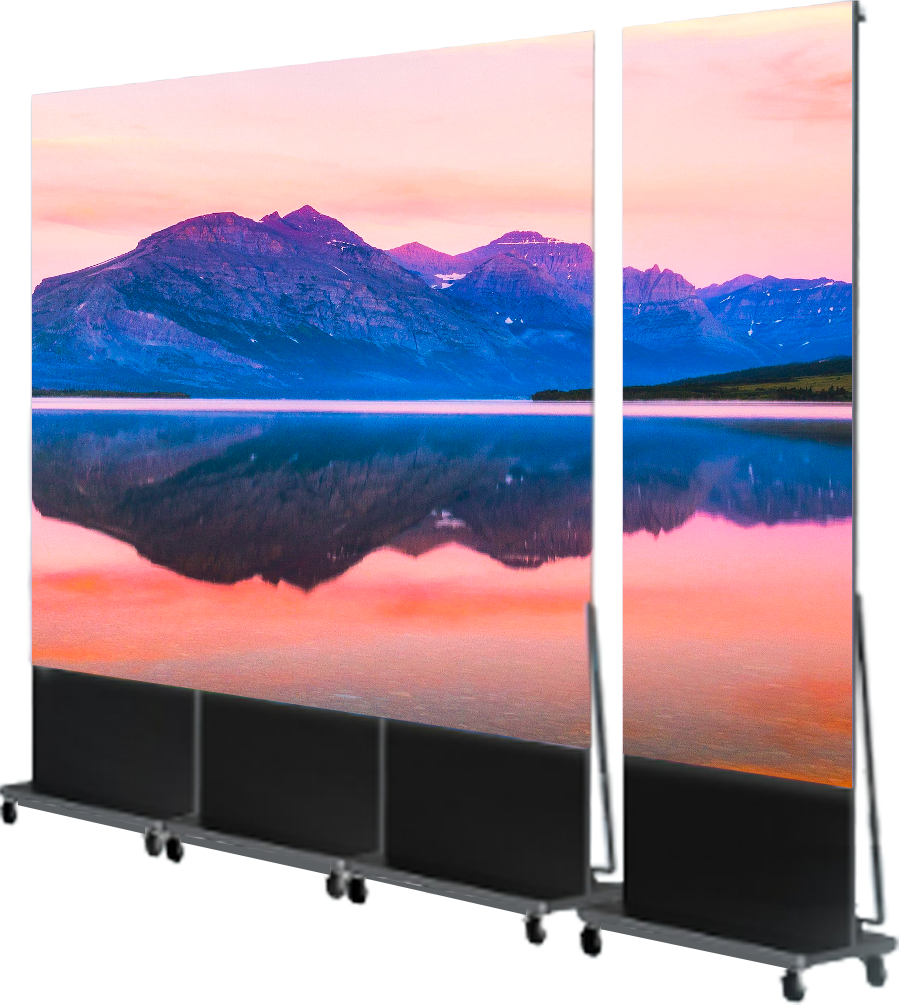

Splicable

You can use each E-Poster as a independent display or splice several of them together to make a large display.

Superior Image Quality

Pro-clarity Technology supported by 6000:1 contrast, 3840HZ
refresh, and 16+ bit grayscale

Versatile Installation

All mounting solutions inculding wall mounting, ceiling hanging, and floor standing compatible. Rich mounting accessories available for all sorts of needs.
Specifications
E-Poster 1.75mm
E-Poster 2mm
E-Poster 2.5mm
E-Poster 2.5mm (outdoor)
Product Model
Per Poster Resolution (WxH)
Unit Size (W*H*D)-mm
Unit Size (W*H*D)-inch
Brightness
Refresh Rate
Grayscale
Contrast Ratio
View Angle

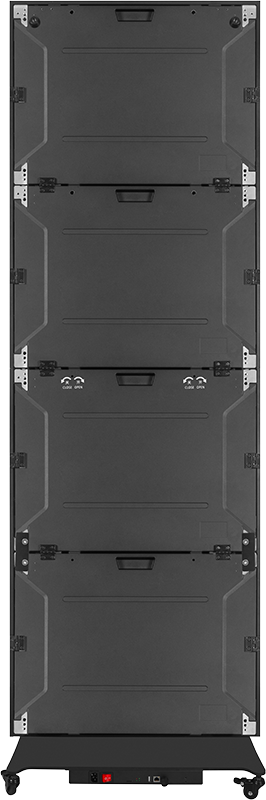

Service Access
Per Unit Weight
Per Unit Power Consumption (max)
Per Unit Power Consumption (typical)
Color Gamut
Color Temperature
Service Life
Working Voltage
Operating Temperature
(10-85% relative humidity, non-condensing)

E-Poster 1.75mm

320*1080

1902x572x33

74.88''x22.52''x1.3''

800 nits

3840 HZ

14-16 bit

5000 :  1

160° Horizontal / 160° Vertical

Rear Service

28 KG / 61.61 LBS

500W

150W

100% NTSC

3,000-10,000 K

80,000 Hours

100V-240V Auto-switching

-10° to 40° C  / 14° to 104° F


E-Poster 2mm

256*864

1902x572x33

74.88''x22.52''x1.3''

900 nits

3840 HZ

14-16 bit

5000 :  1

160° Horizontal / 160° Vertical

Rear Service

28 KG / 61.61 LBS

430W

130W

100% NTSC

3,000-10,000 K

80,000 Hours

100V-240V Auto-switching

-10° to 40° C  / 14° to 104° F

E-Poster 2.5mm

216*729

1902x572x33

74.88''x22.52''x1.3''

900 nits

3840 HZ

14-16 bit

5000 :  1

160° Horizontal / 160° Vertical

Rear Service

28 KG / 61.61 LBS

400W

120W

100% NTSC

3,000-10,000 K

80,000 Hours

100V-240V Auto-switching

-10° to 40° C  / 14° to 104° F

E-Poster 2.5mm (outdoor)

240*800

2072x612x63

81.57''x24.1''x2.48''

5000 nits

3840 HZ

14-16 bit

4000 :  1

160° Horizontal / 160° Vertical

Rear Service

51 KG / 112.2 LBS

800W

240W

100% NTSC

3,000-10,000 K

80,000 Hours

100V-240V Auto-switching

-20° to 50° C  / -4° to 122° F
